Original price was: $14,900.00.Current price is: $12,900.00.

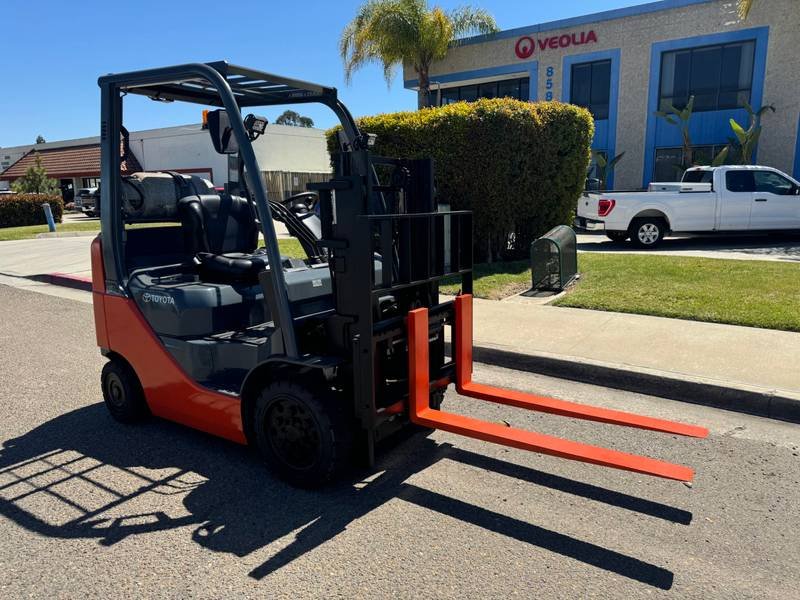

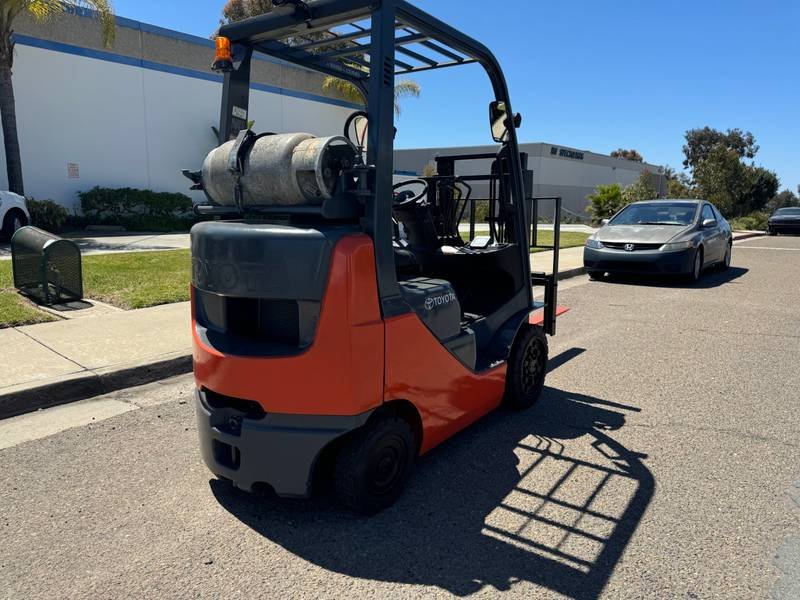

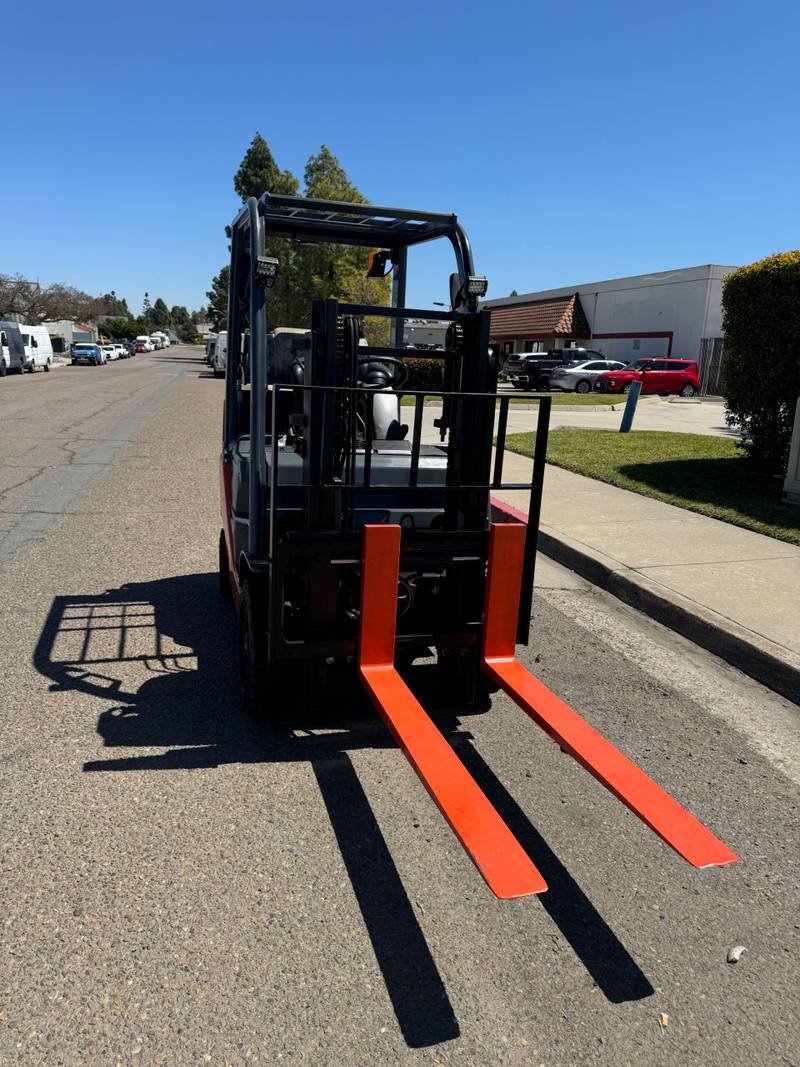

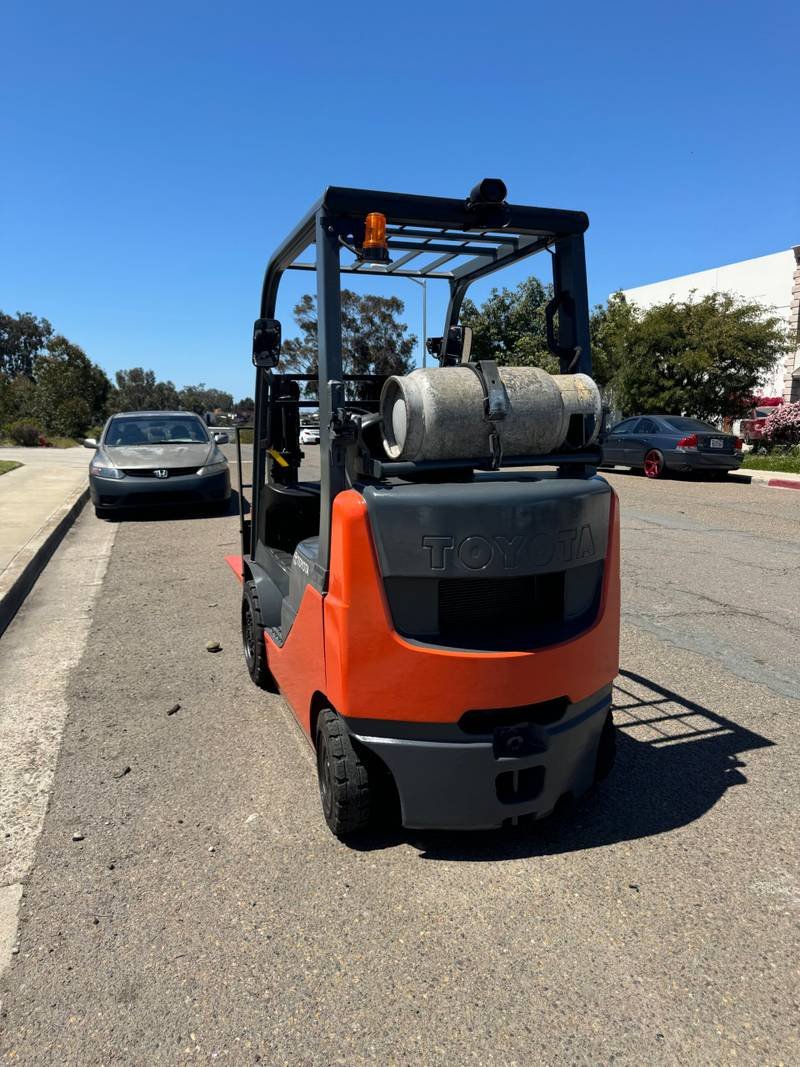

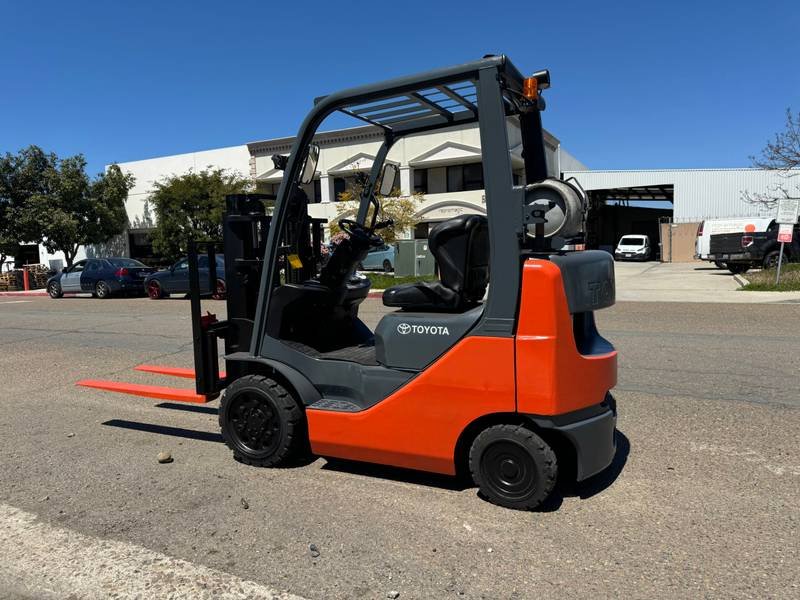

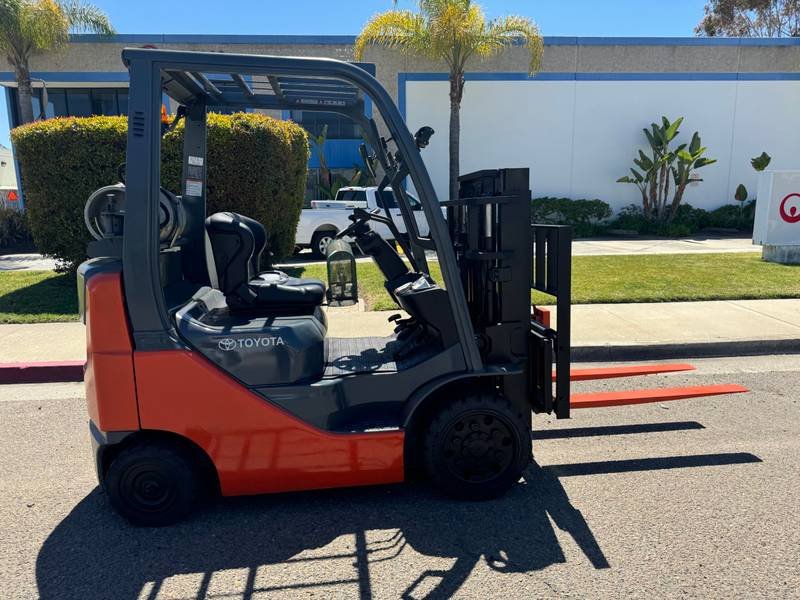

TOYOTA 8FGCU20 Forklift with Truck Mast

The TOYOTA 8FGCU20 Forklift is a robust and versatile material handling solution, designed to excel in various industrial environments. Equipped with a truck mast, this forklift is tailored for efficient and precise operation in warehouses, distribution centers, and manufacturing facilities.

Power and Performance: At the heart of the 8FGCU20 is the reliable Toyota 4Y-ECS engine, a 4-cylinder internal combustion powerhouse capable of running on either LPG or gasoline. With an output of approximately 51 horsepower, this forklift provides ample power for lifting and transporting heavy loads up to 4,000 lbs (1,814 kg). The efficient engine ensures smooth acceleration, reliable performance, and reduced emissions.

Mast Specifications: The truck mast configuration enhances the forklift’s versatility, offering an impressive maximum lift height of up to 189 inches (480 cm) with a 3-stage mast. This makes it ideal for high stacking and deep reach applications. The mast design also includes a free lift feature, allowing for operation in low-ceiling environments without sacrificing lifting capability.

Dimensions and Maneuverability: Designed with compactness and agility in mind, the 8FGCU20 features an overall length to the forkface of approximately 98.4 inches (250 cm) and a width of 42.0 inches (106.7 cm). Its tight turning radius of about 79.5 inches (202 cm) ensures excellent maneuverability in confined spaces, making it perfect for navigating narrow aisles and busy warehouses.

Operator Comfort and Safety: Toyota prioritizes operator comfort and safety in the 8FGCU20. The ergonomic operator compartment includes an adjustable seat and intuitive controls, reducing operator fatigue and enhancing productivity. The high-visibility overhead guard and rearview mirror provide excellent visibility, while the System of Active Stability (SAS) and Operator Presence Sensing System (OPSS) ensure a safe working environment.

Tire Options: The forklift is equipped with durable cushion or pneumatic tires (depending on the configuration), providing the flexibility to handle various surface conditions with ease.

Environmental Benefits: Running on LPG or gasoline, the 8FGCU20 offers a cleaner and more environmentally friendly alternative to diesel-powered forklifts, contributing to a safer and healthier workplace.

Performance Metrics:

  • Travel Speed: Up to 11.5 mph (18.5 km/h)
  • Lifting Speed: Up to 130 ft/min (39.6 m/min)
  • Lowering Speed: Consistent at 98 ft/min (29.8 m/min)
  • Gradeability: 20% laden and 25% unladen

The TOYOTA 8FGCU20 Forklift with truck mast is a reliable, efficient, and versatile solution for your material handling needs. Its powerful performance, ergonomic design, and advanced safety features make it an excellent choice for enhancing productivity and safety in demanding industrial applications.


Category: Tag:


  • Maximum Lifting Capacity: 4,000 lbs (1,814 kg)

Power Source:

  • Engine Type: Internal Combustion (IC)
  • Fuel Type: LPG (Liquid Propane Gas) or Gasoline


  • Model: Toyota 4Y-ECS
  • Type: 4-cylinder
  • Power Output: Approximately 51 hp (38 kW)


Overall Length:

  • Length to Forkface: Approximately 98.4 inches (250 cm)

Overall Width:

  • 42.0 inches (106.7 cm)

Overall Height:

  • Mast Lowered: Approximately 41 inches (106 cm)
  • Mast Extended: Approximately 80 inches (210 cm)

Turning Radius:

  • Approximately 79.5 inches (202 cm)

Ground Clearance:

  • Under Mast: Approximately 3.5 inches (9 cm)

Mast Specifications:

Mast Type:

  • Truck Mast (typically a 2-stage or 3-stage mast)

Lift Height:

  • Maximum Lift Height: 189 inches (480 cm) for a 3-stage mast
  • Free Lift Height: Varies based on mast type

Fork Dimensions:

  • Length: 42 inches (107 cm) (standard)
  • Width: 4 inches (10 cm)
  • Thickness: 1.6 inches (4 cm)


Travel Speed:

  • Laden: Approximately 10.6 mph (17 km/h)
  • Unladen: Approximately 11.5 mph (18.5 km/h)

Lifting Speed:

  • Laden: Approximately 110 ft/min (33.5 m/min)
  • Unladen: Approximately 130 ft/min (39.6 m/min)

Lowering Speed:

  • Laden: Approximately 98 ft/min (29.8 m/min)
  • Unladen: Approximately 98 ft/min (29.8 m/min)


  • Laden: Approximately 20%
  • Unladen: Approximately 25%


Front Tires:

  • Size: 21x7x15
  • Type: Cushion or Pneumatic (depending on configuration)

Rear Tires:

  • Size: 16x5x10.5
  • Type: Cushion or Pneumatic (depending on configuration)


Operating Weight:

  • Approximately 7,950 lbs (3,607 kg)

Safety and Comfort Features:


  • System of Active Stability (SAS)
  • Operator Presence Sensing System (OPSS)
  • High-Visibility Overhead Guard
  • Rearview Mirror

Operator Comfort:

  • Adjustable Seat
  • Ergonomic Controls
  • Excellent Visibility
